| 1. |
Turn the ignition switch
off. |
| 2. |
Connect the Hi-Scan Pro connector to the data
link connector located under the crash pad.
|
| 3. |
Turn the ignition switch on and power on the
Hi-Scan Pro. |
| 5. |
Find and repair the trouble, and clear the
DTCs using Hi-Scan Pro. |
| 6. |
Disconnect the Hi-Scan
Pro. |
| 7. |
Confirm proper system operation :
| A. |
Turn the ignition switch ON ; the SRS
indicator light should be turned on for about six seconds and
then to
off. | |

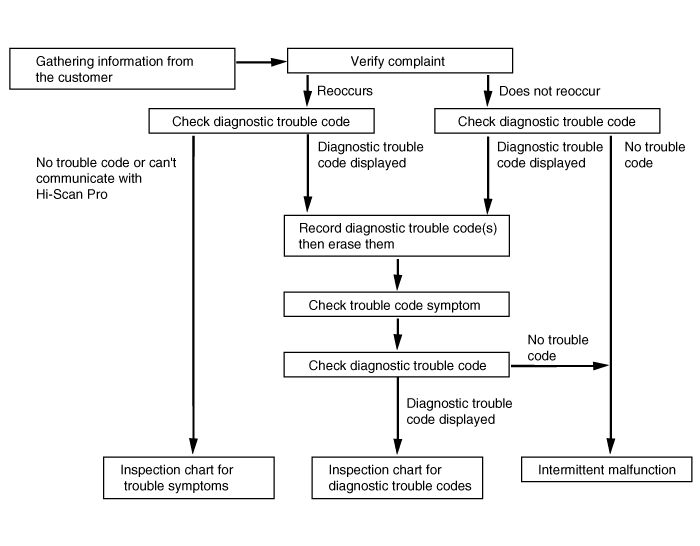

DIAGNOSTIC TROUBLESHOOTING FLOW
Verification of Vehicle Repair
After a repair, it is
essential to verify that the fault has been corrected.
| 1. |
Connect scantool and select "Diagnostic
Trouble Codes(DTC)" mode. |
| 2. |
Using a scantool, clear the
DTC. |
| 3. |
Operate the vehicle within DTC Enable
conditions in General information. |
| 4. |
Are any DTC present ?
▶ Go to the applicable troubleshooting
procedure.
▶ System is performing to specification at
this
time. |
