| Hub nut tightening
sequence |
Tighten the hub nuts as
follows.
Tightening torque Nm
(kgf.m, lb-ft):
90 ~ 110 (9.0 ~ 11.0, 65 ~
80)
|
|
When using an impact gun, final tightening
torque should be checked using a torque
wrench. |
Run out inspection
| 2. |

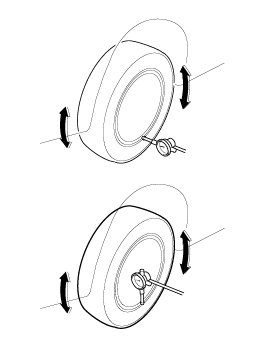

Measure the wheel Run-out by using a dial
indicator as illustration below.
Radial
mm(in)
|
Below
0.3(0.012)
|
Lateral mm(in)
|
Below
0.3(0.012)
|
|
| 3. |
If measured value exceeds the standard value,
replace the wheel.
|
