Restraint > SRSCM > Troubleshooting > B1419 SIS(Side Impact Sensor)Rear-Passenger Defect

General Description

Rear Side Impact Sensor(RSIS) is located in both side of C pillar detects broad collision.

When SIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion. and if both SIS and safing sensor detects collision simultaneously, SRSCM operates side air bag.

DTC Description

The SRSCM sets DTC B1419 if there is any fault in RPSIS circuit.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

•	Check current(PWM type)

•	Faulty RSIS circuit.

•	Faulty RSIS.

•	Faulty SRSCM.

Enable Conditions

•	Ignition "ON"

Diagnostic
Time

Qualification

•	More than 0 ~ 0.05 sec

De-Qualification

•	More than 0 ~ 0.05 sec

Schematic Diagram

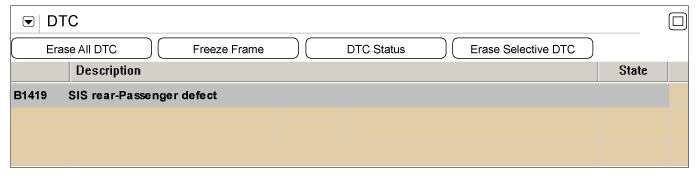

Monitor Scantool Data

1.	Ignition "OFF", connect scantool.

2.	Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode.

3.	Monitor diagnostic trouble code and present of trouble code.

4.	Using a scantool, clear the DTC.

Is DTC present problem ?

▶ Go to "W/Harness Inspection" procedure.

▶ Displaying nothing(no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Terminal and Connector Inspection

1.	Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.	Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

Has a problem been found?

	▶ Repair as necessary and then go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Component Inspection" procedure.

Component Inspection

1.	Ignition "ON" & Engine "OFF" and Using a scantool, clear the DTC.

2.	Ignition "OFF".

3.	Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.

4.	Disconnect RSIS connector.

5.	Substitute the RSIS and check for proper operation.

Is DTC present problem ?

	▶ Substitute a known-good SRSCM, and check for proper operation. If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure. ▶ Substitute the SRS main harness and check for proper operation. If the problem is corrected, replace SRS main harness and then go to "Verification of Vehicle Repair" procedure.
	▶ Substitute a known-good RSIS, and check for proper operation. If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair

After a repair, it is essential to verify that the fault has been corrected.

1.	Connect scantool and select "Diagnostic Trouble Codes(DTC)" mode.

2.	Using a scantool, clear the DTC.

3.	Operate the vehicle within DTC Enable conditions in General information.

Are any DTC present ?

	▶ Go to the applicable troubleshooting procedure.
	▶ System is performing to specification at this time.
