VERACRUZ(EN) >2009 > G 3.8 DOHC > Fuel System > Engine Control System > Electronic Throttle System (ETS)>Schematic Diagrams

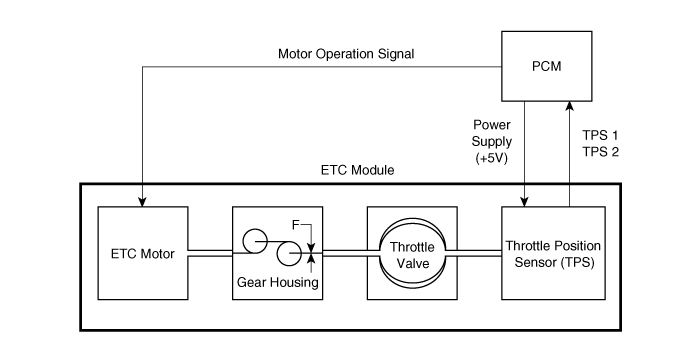

Schematic Diagram

Fail-safe Mode
Mode
Description
Symptom
Possible Cause
MODE 1
FORCED ENGINE SHUTDOWN
Engine stop
•
ETC system can't proceed reliable algorithm procedure
-
Fatal PCM internal programming error
-
Faulty intake system or throttle body
MODE 2
FORCED IDLE & POWER MANAGEMENT
Forced idle state controlled by fuel quantity regulation and ignition timing adjustment
•
ETC system can't control engine power via throttle device
•
Disabled throttle control or broken throttle position information
MODE 3
FORCED IDLE
Forced idle state and no response for accelerator activation
•
No information about the accelerator position
-
Broken APS 1 and 2, faulty A/D converter or internal controller
MODE 4
LIMIT PERFORMANCE & POWER MANAGEMENT
Engine power is determined by accelerator position and idle power requirement (Limited vehicle running)
•
ETC system can't securely control engine power
MODE 5
LIMIT PERFORMANCE
1.
Engine power varies with accelerator position, but driver perceives lack of engine power.
2.
MIL ON (Normal vehicle running)
•
Not reliable accelerator position signal or bad maximum power generation
-
Faulty APS, ignition voltage or internal controller
MODE 6
NORMAL
Normal


Specification
[Throttle Position Sensor]
Throttle Angle(°)
Output Voltage(V) [Vref = 5.0V]
TPS1
TPS2
0°
0
5.0
10°
0.5
4.5
20°
0.9
4.1
30°
1.4
3.6
40°
1.8
3.2
50°
2.3
2.7
60°
2.7
2.3
70°
3.2
1.8
80°
3.6
1.4
90°
4.1
0.9
100°
4.5
0.5
110°
5.0
0

Item
Sensor Resistance
TPS1
4.0 ~ 6.0kΩ at 20°C (68°F)
TPS2
2.72 ~ 4.08kΩ at 20°C (68°F)

[ETC Motor]
Item
Sensor Resistance
Coil Resistance (Ω)
1.275 ~ 1.725Ω at 20°C (68°F)

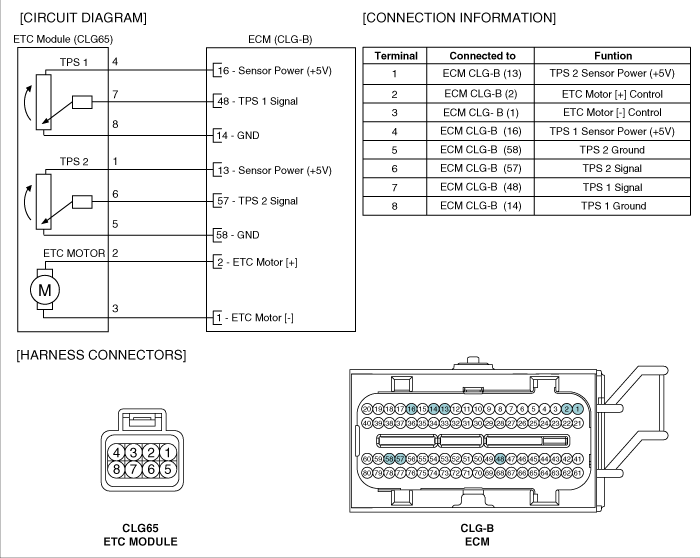

Circuit Diagram
