Refer to the BE group - inspection / self
diagnosis with scan tool |
Smart Key Switch
| - |
Refer to the BE group - inspection / self
diagnosis with scan tool |
Antenna
| - |
Refer to the BE group - inspection / self
diagnosis with scan tool |
Tailgate Switch
| 1. |
Check for continuity between the
terminals.
|
| 2. |
If continuity is not specified, inspect the
switch
|

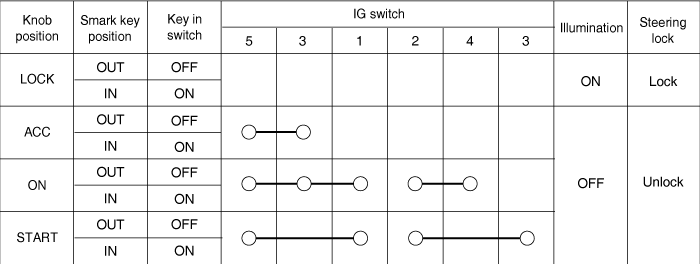

Mechatronic Steering Lock (MSL)
| 1. |
Check for continuity between the terminals of
switch.. |
| 2. |
If continuity is not specified, inspect the
switch
|
Smart Key Unit
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |

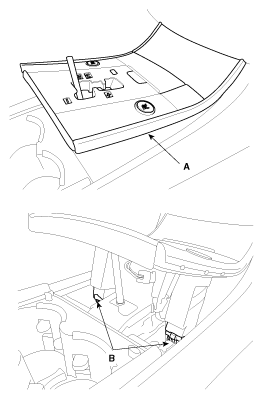

Remove the console under cover( A) and
connectors(B). (Refer to the Body group - Console)
|
| 3. |
After loosening the console mounting screws,
remove the floor console assembly (A). (Refer to the Body group -
Console)
|
| 4. |
After loosening the smart key unit mounting
bolts(B) and connector, remove the smart key unit
(A). |
RF Receiver
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the glove box. (Refer to the Body group
- Crash pad)
|
| 3. |

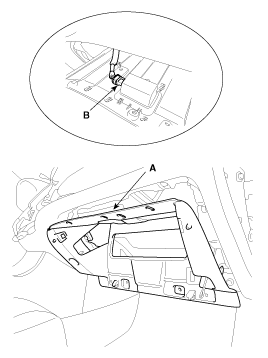

After loosening the mounting screws and bolts,
then remove the glove box housing (A).
Disconnect the connector (B). (Refer to the
Body group - Crash pad)
|
| 4. |
After loosening the mounting nuts(2EA), then
remove the connector.
|
Interior 1 Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the console under cover(A) and
connectors(B). (Refer to the Body group - Console)
|
| 3. |
After loosening the console mounting screws,
remove the floor console assembly (A). (Refer to the Body group -
Console)
|
| 4. |
After loosening the antenna nuts(2EA) and
connector, remove the interior 1 antenna (A).
|
Interior 2 Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the console rear cover(A) and
connectors. (Refer to the Body group - Console)
|
| 3. |
After loosening the console mounting screws,
remove the floor console assembly (A). (Refer to the Body group -
Console)
|
| 4. |
After loosening the antenna bolts(2EA) and
connector, remove the interior 2 antenna (A).
|
Interior 3 Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |

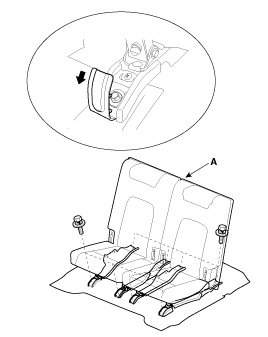

After loosening the mounting bolts, then
remove the third seat assembly(A). (Refer to the Body group - Rear
seat)
|
| 3. |
After loosening the antenna nuts(2EA) and
connector(A), remove the interior 3 antenna (B).
|
Exterior Bumper Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the rear bumper. (Refer to the Body
group - Rear bumper) |
| 3. |
After loosening the antenna connector(A) on
the right side of rear bumper and nuts(2EA), remove the interior
exterior bumper antenna (b).
|
Buzzer
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the buzzer(A) in the clip hole after
disconnecting the connector on the side rail panel
|
Door Outside Handle
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Disconnect the connector after removing the
door trim. (Refer to the Body group - Front
door) |
| 3. |
After loosening the mounting bolt and cap(A),
then remove the key holder (B).
|
| 4. |
Remove the outside handle (A) by sliding it
rearward.
|
Tailgate Switch
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the tailgate trim. (Refer to the Body
group - Tailgate trilm) |

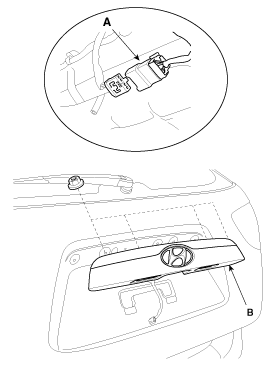

| 3. |
Disconnect the connector (A). After loosening
the remove tailgate garnish mounting nuts, then tailgate garnish
(B).
|
| 4. |
Remove the outside handle (A) after loosening
the outside handle mounting screws.
|
Smart Key Unit
| 1. |
Install the smart key
unit. |
| 2. |
Install the smart key unit mounting bolt and
connector. |
| 3. |
Install the console
assembly. |
| 4. |
Install the console under cover after
connecting the connector. |
| 5. |
Install the negative (-) battery terminal and
check the smart key system. |
RF Receiver
| 1. |
Install the RF
receiver. |
| 2. |
Install the glove box
housing. |
| 3. |
Install the glove
box. |
| 4. |
Install the negative (-) battery terminal and
check the smart key system. |
Interior 1 Antenna
| 1. |
Install the interior 1
antenna. |
| 2. |
Install the console
assembly. |
| 3. |
Install the console under cover after
connecting the connector. |
| 4. |
Install the negative (-) battery terminal and
check the smart key system. |
Interior 2 Antenna
| 1. |
Install the interior 2
antenna. |
| 2. |
Install the connector mounting
bracket.. |
| 3. |
Install the console
assembly. |
| 4. |
Install the console rear cover after
connecting the connector. |
| 5. |
Install the negative (-) battery terminal and
check the smart key system. |
Interior 3 Antenna
| 1. |
Install the interior 3
antenna. |
| 2. |
Install the connector mounting
bracket.. |
| 3. |
Install the third seat
assembly. |
| 4. |
Install the negative (-) battery terminal and
check the smart key system. |
Exterior Bumper Antenna
| 1. |
Install the Exterior bumper
antenna. |
| 2. |
Install the rear
bumper. |
| 3. |
Install the negative (-) battery terminal and
check the smart key system. |
Buzzer
| 2. |
Install the negative (-) battery terminal and
check the smart key system. |
Door Outside Handle
| 1. |
Install the outside
handle. |
| 2. |
Install the door
trim.. |
| 3. |
Install the negative (-) battery terminal and
check the smart key system. |
Tailgate Switch
| 1. |
Install the tailgate
switch. |
| 2. |
Install the tailgate
garnish. |
| 3. |
Install the tailgate
trim. |
| 4. |
Install the negative (-) battery terminal and
check the smart key
system. |
