Body Electrical System > Power Door Locks > Power Door Lock Actuators > Repair procedures

VERACRUZ(EN) >2011 > G 3.8 DOHC > Body Electrical System > Power Door Locks > Power Door Lock Actuators>Repair procedures

Inspection

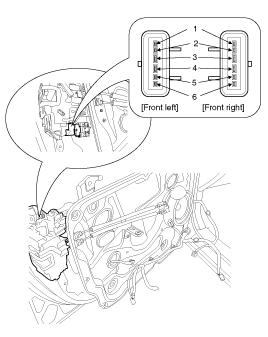

Front Door Lock Actuator

1.	Remove the front door trim. (Refer to the BD group - "Front door")

2.	Remove the front door module. (Refer to the BD group - "Front door")

3.	Disconnect the connectors from the actuator.

4.	Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

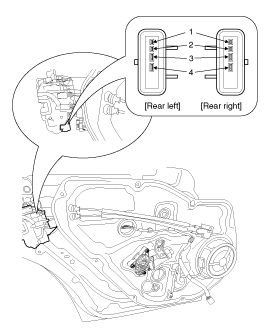

Rear Door Lock Actuator

1.	Remove the rear door trim panel. (Refer to the BD group - "Rear door")

2.	Remove the rear door module. (Refer to the BD group - "Rear door")

3.	Disconnect the connectors from the actuator.

4.	Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Tailgate Lock Actuator

1.	Remove the tailgate trim. (Refer to the BD group - "Tailgate")

2.	Disconnect the 4P connector from the actuator.

3.	Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Front Door Lock Switch

1.	Remove the front door trim. (Refer to the BD group - "Front door")

2.	Remove the front door module. (Refer to the BD group - "Front door")

3.	Disconnect the connectors from the actuator.

4.	Check for continuity between the terminals in each switch position when inserting the key into the door according to the table.

Rear Door Lock Switch

1.	Remove the rear door trim panel. (Refer to the BD group - "Rear door")

2.	Remove the rear door module. (Refer to the BD group - "Rear door")

3.	Disconnect the connectors from the actuator.

4.	Check for continuity between the terminals in each switch position according to the table.

Tailgate Lock Switch

1.	Remove the tailgate trim. (Refer to the BD group - "Tailgate")

2.	Disconnect the 4P connector from the actuator.

3.	Check for continuity between the terminals in each switch position according to the table.
