Hood
Assembly Replacement
| -
|
When removing and installing the hood,
an assistant is necessary. |
| -
|
Take care not to damage the hood and
body. |
| -
|
When removing the clips, use a clip
remover. | |
| 1. |
Using a screwdriver (A), lift up slightly
the socket clips (B) of both ends on the lifter (D), and then remove
the lifter from the bracket (C). |
| 2. |
After loosening the hood hinge (E) mounting
bolts,remove the hood (F). |
| 3. |
Installation is the reverse of
removal.
| - |
Make sure the hood opens
properly and locks
securely. |
| - |
Adjust the hood
alignment. | |
|
Hood
Insulator Replacement
| 1. |

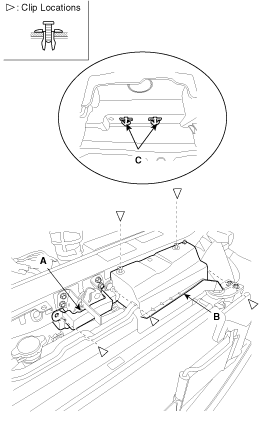

Using a clip remover, detach the clips, and
remove the hood insulator (A).
| • |
Take care not to scratch the
hood panel. |
| |
| 2. |
Installation is the reverse of
removal.
| • |
Replace any damaged
clips. | | |
Hood
Lift Replacement
| •
|
Be sure to support the tailgate when
replacing
lifter. | |

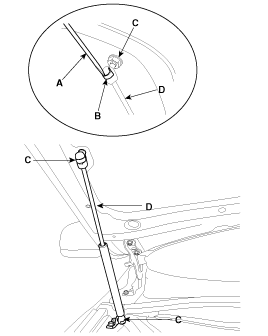

| 1. |
Using a screwdriver (A), lift up slightly
the socket clips (B) of both ends on the lifter (D), and then remove
the lifter from the bracket (C).
|
| 2. |
Installation is the reverse of
removal. |
Hood
Seal Weatherstrip Replacement
| 1. |
Detach the clips, then remove the hood
weatherstrip(A). Take care not to scratch the hood.
|
| 2. |
Installation is the reverse of
removal.
| • |
Replace any damaged
clips. | | |
Hood
Weatherstrip Replacement
| 1. |
Remove the hood weatherstrip
(A).
|
| 2. |
Installation is the reverse of
removal. |
Hood
Release Handle Replacement
| 1. |
Using a socket (B), remove the hood release
handle (A).
|
| 2. |
Installation is the reverse of
removal.
| • |
Make sure the hood latch cable
is connected properly. |
| • |
Make sure the hood locks
securely. | | |
Hood
Latch Replacement
| 1. |
Remove the front bumper
cover. |
| 3. |
Detach the clips (C), then remove the hood
latch cover (A).
|
| 4. |
Remove the hood latch (B) mounting
bolts. |
| 5. |
Disconnect the connector (A).
|
| 6. |
Disconnect the hood latch cable (A) and
remove the latch (B).
|
| 7. |
Installation is the reverse of
removal.
| • |
Make sure the hood latch cable
is connected properly. |
| • |
Make sure the hood locks
securely. |
| • |
Adjust the latch
alignment. | | |

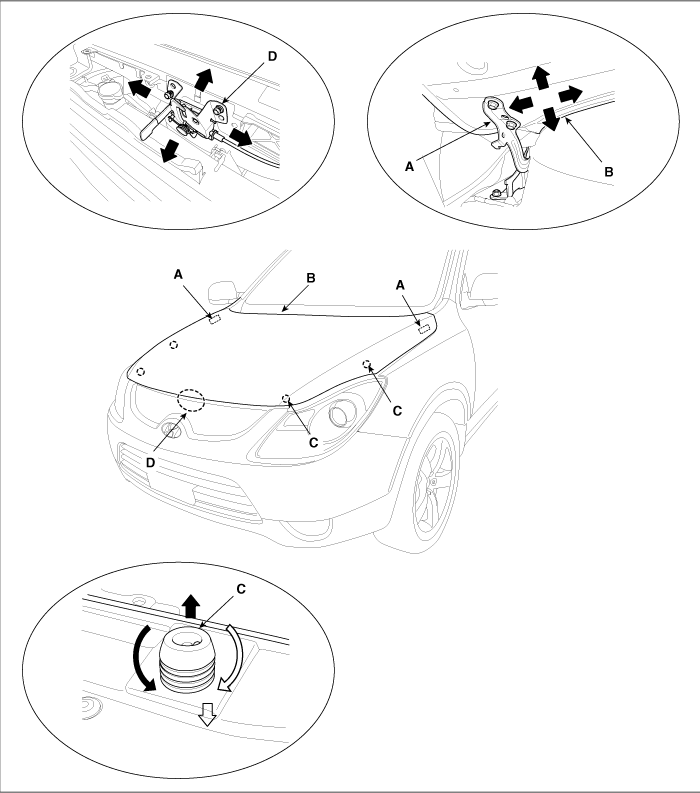

Adjust
Hood
| 1. |
After loosening the hinge (A) mounting bolt,
adjust the hood (B) by moving it up or down, or right or
left. |
| 2. |
Adjust the hood height by turning the hood
overslam bumpers (C). |
| 3. |
After loosening the hood latch (D) mounting
bolts,adjust the latch by moving it up or down, or right or
left.
|
