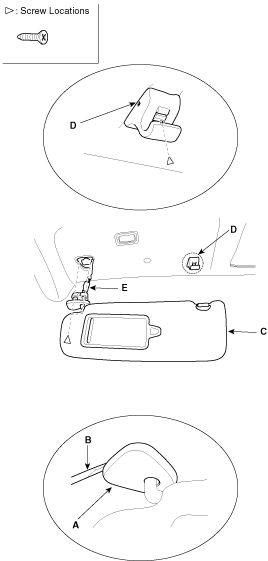

Sunvisor
Replacement
•
|
When prying with a flat-tip
screwdriver, wrap it with protective tape to prevent
damage. |
•
|
Put on gloves to protect your
hands. | |
1. |
Using a screwdriver (B), remove the cover
(A). |
2. |
Remove the sunvisor (C) and holder (D) from
each side. |
3. |
Disconnect the connector (E).

|
4. |
Installation is the reverse of
removal. |

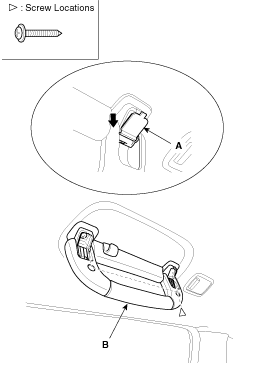

Assist
Handle Replacement
•
|
When prying with a flat-tip
screwdriver, wrap it with protective tape to prevent
damage. |
•
|
Put on gloves to protect your
hands. | |
1. |
Remove the assist handle mounting cap (A),
and remove the screws, then remove the assist handle
(B).

|
2. |
Installation is the reverse of
removal. |
Overhead
Console Lamp Replacement
•
|
When prying with a flat-tip
screwdriver, wrap it with protective tape to prevent
damage. |
•
|
Put on gloves to protect your
hands. | |
1. |
Remove the overhead console
B. |
Pull out the roof console
(A). |
C. |
Disconnect the connector
(B). |

|
2. |
Installation is the reverse of
removal. |
Room
Lamp Replacement
•
|
When prying with a flat-tip
screwdriver, wrap it with protective tape to prevent
damage. |
•
|
Put on gloves to protect your
hands. | |
1. |
Remove the room lamp.
C. |
Pull out the room lamp
(B). |
D. |
Disconnect the connector
(C). |


|
2. |
Installation is the reverse of
removal. |
Vanity
Lamp And Hanse Free Mic
2. |
Disconnect the connector (B).

|
3. |
Installation is the reverse of
removal. |

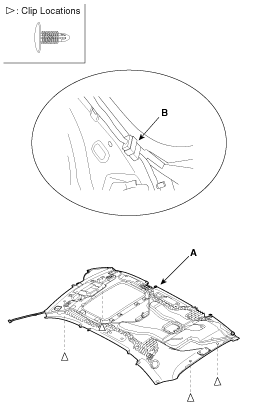

Headliner
Replacement
•
|
Put on gloves to protect your
hands. |
•
|
When prying with a flat-tip
screwdriver, wrap it with protective tape to prevent
damage. |
•
|
Take care not to bend or scratch the
trim and
panels. | |
1. |
Remove the following items :
|
2. |
Remove the connector
(B). |
3. |
Remove the headliner (A).

|
4. |
Installation is the reverse of
removal.
• |
Replace any damage
clips. | | |
